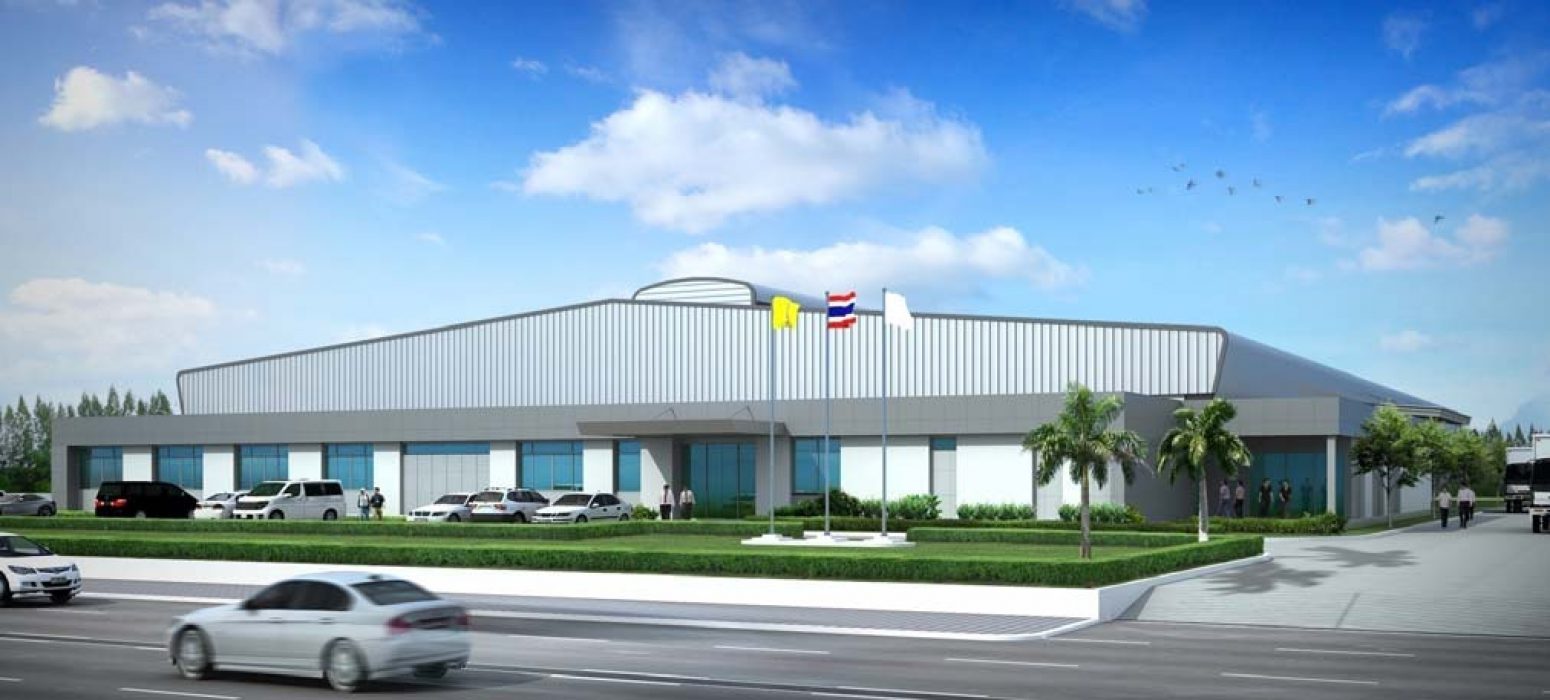

2 Factory Standard Typicals for:
60m Typical Building Width: (Sample G06)
Land Plot Area: approx. 12.03 rais
Factory: approx. 60m wide x 118m long (60m x 36m Expandable)
Usage Area: approx. 7,060 sq.m. (2,160 sq.m. Expandable)
80m Typical Building Width: (Sample G05)
Land Plot Area: approx. 16.62 rais
Factory: approx. 80m wide x 118m long (80m x 60m Expandable)
Usage Area: approx. 9,420 sq.m. (4,800 sq.m. Expandable)
BlueScope Lysaght is a mandatory building components
Approximate Construction Cost: 8,000 THB/Sq.m.
Factory Portion:
Natural Ventilation
7m clear span
Floor load: Allow for 5 tons/sq.m.
Office Portion:
Air Conditioning
3m high ceiling
